Development and Validation of Stability Indicating RP-HPLC Method for Simultaneous Estimation of Lignocaine HCl and Nifedipine in Cream

Abstract

A simple, specific, precise and accurate Stability indicating RP-HPLC method for simultaneous estimation of Nifedipine and Lignocaine HCl In their Combined Dosage Form has been developed. A RP-HPLC method was developed for the simultaneous estimation of Nifedipine and Lignocaine HCl in their Combined Dosage Form has been developed. The separation was achieved by LC- 20 AT C18 (250 mm × 4.6 mm i.d, 5 μm) hypersil BDS column and Buffer (0.05 KH2PO4 pH 3.0): Methanol (50:50) as mobile phase, at a flow rate of 1 ml/min. Detection was carried out at 234 nm. Retention time of Lignocaine HCl and Nifedipine were found to be 4.170 min and 6.530 min respectively. The method has been validated for linearity, accuracy and precision. Linearity observed for Nifedipine 1.5-4.5 μg/ml and for Lignocaine HCl 7.5-22.5 μg/ml. Developed method was found to be accurate, precise and simple, specific for simultaneous estimation of Nifedipine and Lignocaine HCl in their Combine Dosage Form. The drug was subjected to stress condition of hydrolysis, Oxidation, Photolysis and Thermal degradation. The proposed method was successfully applied for the simultaneous estimation of both the drugs in commercial combined dosage form.

Keywords

Nifedipine; Lignocaine HCl; Stability indicating RP-HPLC Method; Validation.

Introduction

Introduction to analytical method

Pharmaceutical products formulated with more than one drug, typically referred to as combination products. These combination products can present daunting challenges to the analytical chemist responsible for the development and validation of analytical methods. The development and validation of analytical methods Spectrophotometric, High performance liquid chromatography (HPLC) and High performance thin layer chromatography (HPTLC) for drug products containing more than one active ingredient. The official test methods that result from these processes are used by quality control laboratories to ensure the identity, purity, potency, and performance of drug products.

The number of drugs introduced into the market is increasing every year. These drugs may be either new entities or partial structural modification of the existing ones. Very often there is a time lag from the date of introduction of a drug into the market to the date of its inclusion in pharmacopoeias. This happens because of the possible uncertainties in the continuous and wider usage of these drugs, reports of new toxicities (resulting in their withdrawal from the market), development of patient resistance and introduction of better drugs by competitors. Under these conditions, standards and analytical procedures for these drugs may not be available in the pharmacopoeias. It becomes necessary, therefore to develop newer analytical methods for such drugs [1-7].

Introduction to HPLC method: Liquid chromatography (LC) is a physical separation technique conducted in the liquid phase. A sample is separated into its constituent components (or analytes) by distributing between the mobile phase (a flowing liquid) and a stationary phase (sorbents packed inside a column). For example, the flowing liquid can be an organic solvent forced through the column at high speed and the stationary phase can be porous silica particles packed in a column. The modern form of column chromatography has been called high performance, high Pressure, high-resolution and high-speed liquid chromatography. HPLC is a modern form of LC that uses small-particle columns through which the mobile phase is pumped at high pressure.

High-performance liquid chromatography (HPLC), sometimes called high-pressure liquid chromatography, is a separation technique based on a solid stationary phase and a liquid mobile phase [1-4] (Figure 1).

Principle of separation: The principle of separation in normal phase mode and reverse phase mode is adsorption. When mixtures of components are introduced in to a HPLC column, they travel according to their relative affinities towards the stationary phase. The component which has more affinity towards the adsorbent travels slower. The component which has less affinity towards the stationary phase travels faster. Since no two components have the same affinity towards the stationary phase, the components are separated.

Figure 2a is a schematic of the chromatographic process, where a mixture of analytes A and B are separated into two distinct bands as they migrate down the column filled with packing (stationary phase).

Figure 2b is a representation of the dynamic partitioning process of the analytes between the flowing liquid and a spherical packing particle. The movement of component B is retarded in the column because each B molecule has stronger affinity for the stationary phase than the A molecule.

An in-line detector monitors the concentration of each separated component band in the effluent and generates a trace called the “Chromatogram” shown in Figure 2c.

There are different modes of separation in HPLC

1) Normal phase mode

2) Reversed phase mode

3) Ion exchange chromatography

4) Reverse phase ion pair chromatography

5) Affinity chromatography and

6) Size exclusion chromatography

Normal phase: In the normal phase mode, the stationary phase is polar and the mobile phase is non polar in nature. In this technique, non-polar compounds travel faster and are eluted first. This is because of the lower affinity between the non-polar compounds and the stationary phase. Polar compounds are retained for longer times because of their higher affinity with the stationary phase. These compounds, therefore take more times to elute. Normal phase mode of separation is therefore, not generally used for pharmaceutical applications because most of the drug molecules are polar in nature and hence take longer time to elute (Figure 3).

Reversed phase mode: Reversed phase mode is the most popular mode for analytical and preparative separations of compound of interest in chemical, biological, pharmaceutical, food and biomedical sciences. In this mode, the stationary phase is non polar hydrophobic packing with octyl or octa decyl functional group bonded to silica gel and the mobile phase is polar solvent. An aqueous mobile phase allows the use of secondary solute chemical equilibrium (such as ionization control, ion suppression, ion pairing and complication) to control retention and selectivity. The polar compound gets eluted first in this mode and non-polar compounds are retained for longer time. As most of the drugs and pharmaceuticals are polar in nature, they are not retained for longer times and hence elute faster. The different columns used are octa decyl silane (ODS) or C18, C8, C4, etc., (in the order of increasing polarity of the stationary phase) (Figure 4).

Ion exchange chromatography: In ion exchange chromatography, the stationary phase contains ionic groups like NR3+ or SO3-, which interact with the ionic groups of the sample molecules. This is suitable for the separation of charged molecules only. Changing the pH and salt concentration can modulate the retention.

Reverse phase ion pair chromatography: Ion pair chromatography may be used for the separation of ionic compounds and this method can also substitute for ion exchange chromatography. Strong acidic and basic compounds may be separated by reversed phase mode by forming ion pairs (columbic association species formed between two ions of opposite electric charge) with suitable counter ions. This technique is referred to as reversed phase ion pair chromatography or soap chromatography.

Affinity chromatography: Affinity chromatography uses highly specific biochemical interactions for separation. The stationary phase contains specific groups of molecules which can absorb the sample if certain steric and charge related conditions are satisfied. This technique can be used to isolate proteins, enzymes as well as antibodies from complex mixtures.

Size exclusion chromatography: Size exclusion chromatography separates molecules according to their molecular mass. Largest molecules are eluted first and the smallest molecules last. This method is generally used when a mixture contains compounds with a molecular mass difference of at least 10%. This mode can be further subdivided into gel permeation chromatography (with organic solvents) and gel filtration chromatography (with aqueous solvents).

Parameters that are affected by the changes in chromatographic conditions:

1. Resolution (Rs)

2. Capacity factor (k')

3. Selectivity (α)

4. Column efficiency (N)

5. Peak asymmetry factor (As)

1) Resolution (Rs)

Resolution is the parameter describing the separation power of the complete chromatographic system relative to the particular components of the mixture.

The resolution (Rs), of two neighboring peaks is defined as the ratio of the distance between two peak maxima. It is the difference between the retention times of two solutes divided by their average peak width. For baseline separation, the ideal value of Rs is 1.5.

It is useful to relate the resolution to the number of plates in the column, the selectivity factor and the retention factors of the two solutes;

To obtain high resolution, the three terms must be maximized. An increase in N, the number of theoretical plates, by lengthening the column leads to an increase in retention time and increased band broadening which may not be desirable. Instead, to increase the number of plates, the height equivalent to a theoretical plate can be reduced by reducing the size of the stationary phase particles.

It is often found that by controlling the capacity factor (k'), separations can be greatly improved. This can be achieved by changing the temperature (in Gas Chromatography) or the composition of the mobile phase (in Liquid Chromatography) (Figure 5).

2) Capacity factor (k')

Capacity factor is the ratio of the reduced retention volume to the dead volume. Capacity factor (k'), is defined as the ratio of the number of molecules of solute in the stationary phase to the number of molecules of the same in the mobile phase. Capacity factor is a measure of how well the sample molecule is retained by a column during an isocratic separation. The ideal value of k' ranges from 2-10. Capacity

3) Selectivity factor (a)

It can also be manipulated to improve separations. When is close to unity, optimizing k' and increasing N is not sufficient to give good separation in a reasonable time. In these cases, k' is optimized first, and then it is increased by one of the following procedures:

1. Changing mobile phase composition

2. Changing column temperature

3. Changing composition of stationary phase

4. Using special chemical effects (such as incorporating a species which complexes with one of the solutes into the stationary phase) (Figure 6).

4) Column efficiency (N)

Efficiency (N), of a column is measured by the number of theoretical plates per meter. It is a measure of band spreading of a peak. Similar the band spread, higher is the number of theoretical plates, indicating good column and system performance. Columns with N ranging from 5,000 to 1,00,000 plates/meter are ideal for a good system (Figure 7).

5) Peak asymmetry factor (Tf)

Peak asymmetry factor, (Tf) can be used as a criterion of column performance. The peak half width (b), of a peak at 10% of the peak height, divided by the corresponding front half width (a), gives the asymmetry factor (Figure 8).

Introduction to stability indicating method: According to an FDA guidance document, a stability-indicating method (SIM) is “a validated quantitative analytical procedure that can detect the changes with time in the pertinent properties of the drug substances and drug product. A stability indicating method accurately measures the active ingredients, without interference from degradation products, process impurities, excipients, or other potential impurities [2,3].

The ICH guidelines Q1A(R2) (2003) elaborate on stability testing of API’s and drug products in order to determine storage conditions, retest period, maximum expiring dating period of drug products, correct packaging to protect the product and transport conditions.

Forced degradation study:

The major routes of degradation of any drug substance include hydrolysis, oxidation, heat and photolysis.

1. Hydrolytic degradation

2. Oxidative degradation

3. Thermal degradation

4. Photolytic degradation

Hydrolytic: Hydrolytic study under acidic and basic condition involves catalyzation of ionisable functional groups present in the molecule. HCl and NaOH are employed for generating acidic and basic stress samples, respectively.

Oxidative condition: Many drug substances undergo autoxidation i.e. oxidation under normal storage condition and involving ground state elemental oxygen.

• Therefore it is an important degradation pathway of many drugs. Auto- oxidation is a free radical reaction that requires free radical initiator to begin the chain reaction. Hydrogen peroxide, metal ions, or trace level of impurities in a drug substance act as initiators for auto-oxidation

• The mechanism of oxidative degradation of drug substance involves an electron transfer mechanism to form reactive anions and cations.

• Amines, sulphides and phenols are susceptible to electron transfer oxidation to give N-oxides, hydroxylamine, sulphones and sulphoxide.

• Hydrogen peroxide is very common oxidant to produce oxidative degradation products which may arise as minor impurities during long term stability studies.

Thermal condition

• In general, rate of a reaction increase with increase in temperature. Hence, the drugs are susceptible to degradation at higher temperature.

• Many APIs are sensitive to heat or tropical temperatures. For example, vitamins, peptides, etc. Thermal degradation involves different reactions like pyrolysis, hydrolysis, decarboxylation, isomerization, rearrangement and polymerization.

Photolytic condition

• The rate of photodegradtion depends upon the intensity of incident light and quantity of light absorbed by the drug molecule. The photolytic degradation can occur through non-oxidative or oxidative photolytic reaction.

• Photolytic degradation is carried out by exposing the drug substance or drug product to a combination of visible and UV light.

• The non-oxidative photolytic reaction include isomerization, dimerization, cyclization, rearrangements & decarboxylation etc. and while oxidative photolytic reaction occur through either singlet oxygen (1O₂) or triplet oxygen (3O₂) mechanism.

Introduction to spectroscopic method: Absorption spectroscopy is one of the most useful and widely used tools available to the analyst for quantitative analysis. The relation between the concentration of analyte and the amount of light absorbed is the basis of most analytical applications of molecular spectroscopy. This method of analysis is gaining importance due to simple, rapid, precise, highly accurate and less time consuming [5-7] (Figure 9).

Quantitative analysis by UV-Visible Spectrophotometry.

a. Use of a standard absorptivity value. b. Use of a calibration graph.

c. Single or double point standardization.

Multi component system: The spectrophotometric analysis of drugs rarely involves the measurement of absorbance of sample containing only one absorbing component. The pharmaceutical analyst frequently encounters the situation where the concentration of one or more substances is required in samples known to contain other absorbing substances, which potentially interfere in the analysis. Absorbance from sources other than drugs like impurities, decomposition products, formulation excipients is termed as irrelevant absorbance and if not removed imparts a systematic error to the analysis of the drug in sample. Number of modifications to the simple spectrophotometric procedure described in previous section for single component samples is available to the analyst, which eliminate certain sources of interference and permit the accurate determination of one or all of the absorbing components. The basis of all the spectrophotometric techniques for multi component samples is the property that at all wavelengths,

i. The absorbance of a solution is the sum of absorbance of the individual components.

ii. The measured absorbance is the difference between the total absorbance of the solution in the sample cell and that of the solution in the reference (blank) cell.

The various spectroscopic techniques used for multi component analysis are as follows:

a) Simultaneous equation method

Concentration of several components presents in the same mixture can be determined by solving assets of simultaneous equation even if their spectra overlap (if Beers law is followed) this equation are linear.

b) Absorption ratio method

The absorbance ratio method is a modification of the simultaneous equation procedure. It depends on the property that for a substance, which obeys Beer’s law at all wavelength, the ratio of absorbance at any two wavelengths is constant value independent of concentration or path length.

eg. 2 dilutions of the same substance give the same absorbance ratio A1 / A2. In the USP, this ratio is referred to as Q value.

c) Geometric correction method

It is a method of eliminating the background irrelevant absorption that may be present in the biological origin samples. The simplest of them is being three point geometric correction methods.

d) Orthogonal polynomial method

A mathematical correction procedure, involving complex calculation on the basis that absorption can be represented in terms of orthogonal functions.

e) Difference spectroscopy

It is a sensitive method for detecting small change in the chemical environment of a chromophore. The essential feature of this method is that the measured absorbance between the equimolar solution of analyte in different chemical forms exhibits different spectra characteristics.

f) Derivative spectroscopy

Derivative Spectrophotometry is useful means of resolving two overlapping spectra and eliminating matrix interference due to an indistinct shoulder on side of an absorption bands.

It involves conversion of normal spectrum [A= f (λ)] to its first [d1A/ dλ1 = f (λ)], second [d2A/ dλ2 = f (λ)] and higher derivatives spectra where the amplitude in the derivative spectrum is proportional to the concentration of the analyte provided that Beer’s law is obeyed by the fundamental spectrum.

g) Area under curve method

In this method, the absorptivity values (ε1 and ε2) of each of the two drugs were determined at the selected wavelength range. Total area under curve of a mixture at wavelength range is equal to the sum of area under the individual component at that wavelength range. This method is applicable when the λmax of the two components is reasonably dissimilar, the two components do not interact chemically and both the component must be soluble in same solvent.

The methods deviated when overlapping of UV spectra of two drugs significantly and large difference in labeled strength.

Introduction to validation parameter: Method validation is the process used to confirm that the analytical procedure employed for a specific test is suitable for its intended use. Results from method validation can be used to judge the quality, reliability and consistency of analytical results; it is an integral part of any good analytical practice [7,8].

• Analytical methods need to be validated or revalidated.

• Before their introduction into routine use

• Whenever the conditions change for which the method has been validated (e.g., an instrument with different characteristics or samples with a different matrix)

• Whenever the method is changed and the change is outside the original scope of the method

• The ICH has published specific guidelines for method validation for compound evaluation (Figure 10).

Accuracy: The accuracy of an analytical procedure expresses the closeness of agreement between the value which is accepted either as a conventional true value or an accepted reference value and the value found. This is sometimes termed trueness.

The accuracy of an analytical method should be established across its range. In the case of the assay of a drug in a formulated product, accuracy may be determined by application of the analytical method to synthetic mixtures of the drug product components to which known amount of analyte have been added within the range of the method. Minimum of test concentrations from 50% to 120% are normally used, for establishment of accuracy in assay of drug substance (or a finished product). Average recovery should be 98 to 102% of drug at each level.

Precision: The precision of an analytical procedure expresses the closeness of agreement (degree of scatter) between a series of measurements obtained from multiple sampling of the same homogeneous sample under the prescribed conditions. Precision may be considered at three levels: repeatability, intermediate precision and reproducibility.

Precision should be investigated using homogeneous, authentic samples. However, if it is not possible to obtain a homogeneous sample it may be investigated using artificially prepared samples or a sample solution.

The precision of an analytical procedure is usually expressed as the variance, standard deviation or coefficient of variation of a series of measurements. In the precision results of all samples should not have RSD > 2%.

Specificity: Specificity is the ability to assess unequivocally the analyte in the presence of components which may be expected to be present. Typically these might include impurities, degradants, matrix, etc.

Identification: to ensure the identity of an analyte.

Purity Tests: to ensure that all the analytical procedures performed allow an accurate statement of the content of impurities of an analyte, i.e. related substances test, heavy metals, residual solvents content, etc.

Assay: To provide an exact result which allows an accurate statement on the content or potency of the analyte in a sample.

Determination of specificity: ICH document state that when chromatographic procedure used, representative chromatograms should be used to demonstrate specificity and individual components should be appropriately detected. Peak purity tests may be useful to show that the analyte chromatographic peak is not attributable to more than one component (e.g., diode array, mass spectrometry).

Limit of detection: The limit of detection of an individual analytical procedure is the lowest amount of analyte in a sample which can be detected but not necessarily quantitated as an exact value.

Determination of limit of detection: For instrumental and non-instrumental methods detection limit is generally determined by the analysis of samples of known concentration of analyte and by establishing the minimum level at which the analyte can be reliability detected.

The limit of detection (LOD) may be expressed as:

LOD= 3.3 σ/s

Where, σ=the standard deviation of the response.

S=the slope of the calibration curve.

The slope S may be estimated from the calibration curve of the analyte.

Limit of quantitation: The limit of quantitation of an individual analytical procedure is the lowest amount of analyte in a sample which can be quantitatively determined with suitable precision and accuracy. The limit of quantitation is a parameter of quantitative assays for low levels of compounds in sample matrices, and is used particularly for the determination of impurities and/or degradation products.

Determination of limit of quantitation: For instrumental and non-instrumental methods quantitation limit is generally determined by the analysis of samples of known concentration of analyte and by establishing the minimum level at which the analyte can be quantified with acceptable accuracy and precision.

The limit of quantitation (LOQ) may be expressed as:

LOQ=10 σ/s

Where, σ=the standard deviation of the response.

S=the slope of the calibration curve.

Linearity and range: The linearity of an analytical procedure is its ability (within a given range) to obtain test results which are directly proportional to the concentration (amount) of analyte in the sample.

The range of an analytical procedure is the interval between the upper and lower concentration (amounts) of analyte in the sample (including these concentrations) for which it has been demonstrated that the analytical procedure has a suitable level of precision, accuracy and linearity.

Determination of linearity and range: For the determination of linearity, a minimum of 5 concentrations is recommended. Linearity can be determined by a series of sample whose concentrations span 80-120% of the expected concentration range. Linearity is evaluated by graphically.

Ruggedness: Degree of reproducibility of test results obtained by the same samples under a different condition such as different analysts, different laboratories condition, different instrument etc. normally expressed as the lack of influence on test results of operational & environmental variables of the analytical method. Ruggedness is a measure of reproducibility of test results under the variation in the condition normally expected from laboratory to laboratory and from analyst to analyst.

Determination of ruggedness: By analysis of aliquots from homogenous lots in different laboratory, by different instrument and using operational and environmental condition that may differ but still with the specified parameters of the assay. Degree of reproducibility of test results is then determined as a function of the assay variables.

Different operator in same laboratory, Different equipment in same laboratory.

Different source of segment and solution, Different source of column.

Robustness

The robustness of an analytical procedure is a measure of its capacity to remain unaffected by small, but deliberate variations in method parameters and provides an indication of its reliability during normal usage.

Determination of robustness: The evaluation of robustness should be considered during the development phase and depends on the type of procedure under study. It should show the reliability of an analysis with respect to deliberate variations in method parameters.

Examples of typical variations are:

• Stability of analytical solutions

• Extraction time

• In the case of liquid chromatography, examples of typical variations are:

• Influence of variations of pH in a mobile phase

• Influence of variations in mobile phase composition

• Different columns (different lots and/or suppliers)

• Temperature and flow rate

➢ Applications and advantages

i. An ideal method for separation of various compounds in plant extracts which resemble in structure and thus demand specific and very sensitive method.

ii. A premier separation technique capable of multi component analysis of real life samples and complex mixtures.

iii. This method is used for ascertaining of various pharmaceuticals. The analysis of the various degradation products can be done and thus stability indicating HPLC systems and method has developed.

iv. Highly automated, using sophisticated auto-samplers and data systems for unattended analysis and report generation. Few techniques can match its versatility and precision of ±0.5% RSD.

v. A host of highly sensitive and specific detectors extend detection limits to nanogram, picogram, and even femtogram levels. As a preparative technique, it provides quantitative recovery of many labile components in milligram to kilogram quantities.

vi. Having Rapid and precise quantitative analysis. Quantitative sample recovery and amenable to diverse samples. Most importantly, It is amenable to 60% to 80% of all existing compounds [1,2].

Introduction to disease

1. Chronic anal fissure is the most common cause of anal pain associated with internal anal sphincter hypertonia. Reduction of hypertonocity is a special treatment for fissure healing. For this purpose chronic anal fissures were conventionally treated by anal dilatation or by lateral sphincterotomy.

2. However, both of these methods may cause a degree of incontinence in some patients. The uptake of medical therapies that create a reversible chemical sphincterotomy has recently become widespread. The aim of this prospective clinical trial study was to assess the effectiveness of Nifedipine in healing anal fissure, a calcium channel blocker that reduces sphincter pressure.

3. A single blind randomized comparative trial was setup to compare traditional treatment with stool softeners and 2% Lignocaine HCl cream against 0.5% Nifedipine cream for 4 weeks. 110 patients were included in this study, 60 patients in the Nifedipine group and 50 patients in the control group and the therapeutic outcome and side effects were recorded. Healing had occurred in 70% of patients in the Nifedipine group and in 12% of patients in the control group after 4 weeks treatment (P < 0.005).

4. Recurrence of symptoms occurred in four of healed patients in the Nifedipine group and three patients in the control group in two months. The final result of Nifedipine application after 12 months follow up was recurrence in 11 patients (26.19%). Mild headache occurred in four patients (6.6%) of the Nifedipine group. Patients in the Nifedipine group showed significant healing and relief from pain compared with patients in the control group. Recurrence rate with Nifedipine use in spite of control of predisposing factors such as constipation was significant. Another finding was low complication rate with this treatment [9].

Rationale for combination

Lignocaine HCl:

• Pharmacological class: local anaesthetic and cardiac depressant

Nifedipine:

• Pharmacological Class: Calcium Channel Blocker and Vasodilator.

Mechanism of Action of Lignocaine HCl and Nifedipine:

Lignocaine HCl is act as anaesthetic and Nifedipine act as vasodilator which reduces sphincter pressure, which result in reduction in hyper tonicity in Anal Fissure [9-13].

Drug Profile

Lignocaine HCl [10,11] (Table 1)

Table 1. Lignocaine HCl [10-11].

Nifedipine [12,13] (Table 2)

Table 2. Nifedipine [12-13].

Review of Literature [14-54]

Lignocaine HCl [14-33]

Official Method of Lignocaine HCl[14-15] (Table 3)

Table 3. Official Method Of Lignocaine HCl [14-15].

Reported Method for Lignocaine HCl[16-33] (Table 4)

Table 4. Reported Method For Lignocaine HCl [16-33].

Nifedipine [33-53]

Official Method of Nifedipine (Table 5) [33-35]

Table 5. Official Method Of Nifedipine [33-35].

Reported Method for Nifedipine (Table 6) [33-53]

Table 6. Reported Method For Nifedipine [33-53].

Reported method for Lignocaine HCl and Nifedipine in combination (Table 7) [54]

Table 7. Reported method for lignocaine hcl and nifedipine in combination [54].

Introduction to Marketed formulation

The Cream Anobliss contains the combination of Nifedipine (0.3 % w/w) and Lignocaine HCl (1.5 % w/w) Manufactured By Samarth Life sciences [14-54] (Table 8) (Figure 11).

Table 8. Introduction To Marketed Formulation.

Summary of Psar Report

1) Patent EP19960113165 relates to the preparation of Nifedipine containing pharmaceutical extended release composition and a process for the preparation thereof. In particular the present invention relates to pharmaceutical formulations which provide controlled release at regular rates and within desired periods of the pharmacologically useful and active drug 'Nifedipine', among others, for Vasopastic Angina, chronic stable Angina (Classical effort Associated Angina) and hypertension.

2) Patent US 07/472,659 relates to Nifedipine containing pharmaceutical compositions and to a process for the preparation thereof. In particular the present invention relates to a slow release formulation containing Nifedipine and to a process for the preparation thereof.

3) Patent US 08/738,925 relates to novel oral pharmaceutical formulations of Nifedipine having controlled release properties, and also a method of preparing such formulations.

The formulations are comprised of pellets having multiple coatings, the innermost layers from which Nifedipine is slowly released over time. These formulations have been shown to exhibit excellent controlled release properties. The method for preparing the formulations provides pharmaceutical preparations for oral administration in both tablet and capsule dosage form, and, more particularly, provides therapeutic preparations comprising coated pellets which release a dose of Nifedipine over a prolonged period of time in the digestive system of a patient.

4) Patent EP20040741683 relates to the field of human medicine, and specifically to topical anaesthetic formulations which include mixtures of several anaesthetic 5 agents.

5) Patent US 13/722,458 directed to a transdermal delivery patch comprising a local analgesic agent and optionally a permeation enhancement agent, for reducing pain [55-59] (Table 9).

Table 9. Summary Of Psar Report [55-59].

Looking at above 05 patents, my Dissertation project is novel up to: Novelty grade: – <50%

Rationale

After conducting patent search & literature survey on analytical method development for Nifedipine and Lignocaine. It was found that only process patent of synthesis, and preparation of formulations are patented.

Even though, till now there is no analytical method development reported on Nifedipine and Lignocaine HCl.

Dosage form containing Nifedipine and Lignocaine HCl is also available in market. So, I thought to develop the method for simultaneous estimation of Nifedipine and Lignocaine HCl.

Aim And Objective

Aim

➢ Literature review reveals that numbers of individual analytical methods available for estimation of Lignocaine HCl and Nifedipine in their individual and with other Combined dosage forms and only one analytical method found for this combination.

➢ But still no Stability indicating RP-HPLC method has been reported for simultaneous estimation of Lignocaine HCl and Nifedipine in combined pharmaceutical dosage form.

➢ So, Aim of present work is to develop simple, accurate, precise, rapid, specific, sensitive and selective Reverse Phase HPLC method for simultaneous estimation of Lignocaine HCl and Nifedipine to perform stability indicating method on it in their Combined pharmaceutical dosage forms.

Objective

➢ To develop RP-HPLC method for simultaneous estimation of Lignocaine HCl and Nifedipine in pharmaceutical dosage form.

➢ Applying the newly developed, validated analytical method for the estimation of Lignocaine HCl and Nifedipine formulations.

➢ To perform stability indicating method on the developed RP- HPLC Method.

➢ Applying newly developed and validated stability indicating RP-HPLC method for simultaneous estimation of Lignocaine HCL and Nifedipine.

Experimental Work

Instruments and Reagents used in Experiments

Instruments (Table 10)

Table 10. Instruments.

Equipments (Table 11)

Table 11. Equipments.

Reagents

• Lignocaine HCl was procured from Oasis Laboratory.

• Nifedipine was procured from RPG Life science

• Water

• Methanol

• Potasium Dihydrogen phosphate

Preliminary Analysis of Drug

Lignocaine HCl

1) Description

The sample of Lignocaine HCl was observed for its color and texture.

2) Melting point

The sample of Lignocaine HCl was taken in capillary and place into the melting point apparatus. Observed the melting point and compared with the reference (Table 12).

Table 12. Melting point Lignocaine HCl.

3) Solubility

The sample of Nifedipine was taken in test tubes and observed for solubility in various solvents like water, methanol, 0.1 N HCl and 0.1 N NaOH (Table 13).

Table 13. Solubility.

Nifedipin

1) Description

The sample of Nifedipine was observed for its color and texture.

2) Melting point

The sample of Nifedipine was taken in capillary and place into the melting point apparatus. Observed the melting point and compared with the reference (Table 14).

Table 14. Melting point of Nifedipine.

3) Solubility

The sample of Nifedipine was taken in test tubes and observed for solubility in various solvents like water, methanol, 0.1 N HCl and 0.1 N NaOH (Table 15).

Table 15. Solubility.

Table 16. Results of system suitability parameter.

Identification of Drug by IR Spectroscopy

A pellet of the drug and KBr (Spectroscopic grade) was prepared using hydraulic pellet press at a pressure of 7-10 tones. FT-IR was scanned from 400-4000 cm^-1

Following peaks were observed.

1) LIGNOCAINE HCl (Figures 12 and 13)

Interpretation of IR Spectra of Lignocaine HCl

2) NIFEDIPINE (Figures 14 and 15)

Interpretation of IR Spectra of Nifedipine

Method development for simultaneous estimation of lignocaine HCL and Nifedipine

Selection of elution mode

Reverse phase chromatography was chosen because of its recommended use for ionic and moderate to non-polar compounds. Reverse phase chromatography is not only simple, convenient but also better performing in terms of efficiency, stability and reproducibility. C18 column is least polar compare to C4 and C8 columns. Here, A 250×4.6 mm column of 5.0 μm particle packing was selected for separation of Lignocaine HCl and Nifedipine. Isocratic mode was chosen due to simplicity in application and robustness with respect to longer column stability.

Selection of wavelength

An ideal wavelength is one that gives good response for the drugs that are to be detected. In the present study drug solutions of Lignocaine HCl(15 μg/mL) and Nifedipine (3 μg/mL) were prepared in Methanol. These drug solutions were than scanned in UV region of 200-400 nm and overlain spectrums were recorded (Figure 16).

Both Lignocaine HCl and Nifedipine show reasonably good response at 234 nm.

Selection of mobile phase (Figures 17-30)

Selection Of Mobile Phase

Optimization of Flow Rate

1ml/min flow rate, proved to be better than the other in terms of resolution, peak shape and shorter retention time.

Prepration of solutions

(A) Lignocaine HCl standard stock solution (150 μg/mL):

A 15 mg of Lignocaine HCl was weighed and transferred into 100 mL volumetric flask. Volume was made up to the mark by Methanol.

(B) Nifedipine standard stock solution (30 μg/mL):

A 30 mg of Nifedipine was weighed and transferred into 100 mL volumetric flask. volume was made up to the mark by Methanol from the above solution 1 ml was taken and transfer it into 10 ml volumetric flask volume was made up to the mark by Methanol

(C) Preparation of Buffer (0.05 KH2PO4 pH 3.0) solution:

6.8 gm KH2PO4 was taken in to a 1000 ml beaker, 800 ml water is added, adjust pH 3.0 with O-Phosphoric acid, Made up Volume 1000 mL by water.

(D) Preparation of standard solution of Lignocaine HCl (15 μg/mL) and Nifedipine (3 μg/mL)

1 mL from Lignocaine HCl stock solution and 1mL from Nifedipine stock solution was taken and transferred it into 10 mL volumetric flask, volume was made up to the mark by Mobile phase.

Chromatographic condition

Column: C18 (250 nm × 4.6 mm i.d, 5μm) hypersil BDS

Flow Rate: 1.0 ml/min

Operating temperature: Room temperature

Selected Wavelength: 234 nm

Mobile Phase: Buffer (0.05M KH2PO4 pH 3.0): Methanol (50:50)

Run Time:10.0 min

Injection Volume: 20 μl

Validation of RP-HPLC method

Specificity: The Chromatograms of Lignocaine HCl (15 μg/mL) and Nifedipine (3 μg/mL) standards and Lignocaine HCl (15 μg/mL) and Nifedipine (3 μg/mL) sample shows no interference with the Chromatogram of Lignocaine HCl and Nifedipine Blank, so the Developed method is Specific (Figures 31-35).

Linearity and range

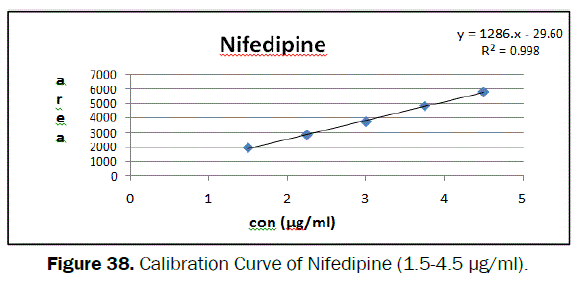

➢ The linearity for Lignocaine HCl and Nifedipine were assessed by analysis of combined standard solution in range of 7.5- 22.5 μg/ml and 1.5-4.5 μg/ml respectively

➢ 5,7.5,10,12.5,15 ml solutions were pipette out from the Stock solution of Lignocaine HCl (150 μg/ml) and Nifedipine (30 μg/ml) and transferred it into 100 ml volumetric flask and made up to the mark by Mobile phase [Buffer(0.05M KH2PO4 pH 3.0): Methanol (50:50)] to obtain 7.5, 11.25, 15, 18.75 and 22.5 μg/ml and 1.5, 2.25, 3, 3.75 and 4.5 μg/ml for Lignocaine HCl and Nifedipine respectively

➢ In term of slope, intercept and correlation co-efficient value. The graph of peak area obtained verses respective concentration was plotted (Tables 17 and 18) (Figures 36-38).

Table 17. Linearity data for Lignocaine HCl.

Table 18. Linearity data for Nifedipine.

Precision

A. Repeatability

Standard solution containing Lignocaine HCl (15 μg/mL) and Nifedipine (3 μg/ml) was injected six times and areas of peaks were measured and % R.S.D. was calculated

B. Intra-day precision

Standard solution containing (7.5, 15, 22.5 μg/ml) of Lignocaine HCl and (1.5, 3, 4.5 μg/ml) of Nifedipine were analyzed three times on the same day and % R.S.D was calculated.

C. Inter-day precision

Standard solution containing (7.5, 15, 22.μg/ml) of Lignocaine HCl and (1.5, 3, 4.5 μg/ml) of Nifedipine were analyzed three times on the different day and % R.S.D was calculated.

I. Repeatability

The % RSD for Lignocaine HCl and Nifedipine was found to be 0.57 and 0.86 respectively (Tables 19 and 20).

Table 19. Repeatability data for Lignocaine HCl.

Table 20. Repeatability data for Nifedipine.

II. Intraday precision

The data for Intraday precision for Lignocaine HCl and Nifedipine is shown in Table 21.

Table 21. Intraday precision data for estimation of Lignocaine HCl and Nifedipine.

III. Interday precision

The data for Interday precision for Lignocaine HCl and Nifedipine is shown in Table 22.

Table 22. Interday precision data for estimation of Lignocaine HCl and Nifedipine.

Accuracy

➢ For Lignocaine HCl

7.5 μg/ml drug solution was taken in three different flask label A, B and C. Spiked 80%, 100%, 120% of standard solution in it and diluted up to 10ml. The area of each solution peak was measured at 234 nm. The amount of Lignocaine HCl was calculated at each level and % recoveries were computed (Table 23).

Table 23. Recovery data for Lignocaine HCl.

➢ For Nifedipine

1.5 μg/ml drug solution was taken in three different flask label A, B and C. Spiked 80%, 100%, 120% of standard solution in it and diluted up to 10ml. The area of each solution peak was measured at 234 nm. The amount of Nifedipine was calculated at each level and % recoveries were computed.

Accuracy of the method was confirmed by recovery study from marketed formulation at three level of standard addition. The results were shown in below table (Table 24).

Table 24. Recovery data for Nifedipine.

Limit of detection and limit of quantification

• The LOD was estimated from the set of 3 calibration curves used for determination of linearity. The LOD may be calculated as Table 25,

Table 25. Limit of Detection data for Lignocaine HCl and Nifedipine.

LOD = 3.3 × (SD/Slope)

Where,

SD= Standard deviation of Y-intercepts of 3 calibration curves. Slope = Mean slope of the 3 calibration curves.

• The LOQ was estimated from the set of 3 calibration curves used to determine linearity. The LOQ may be calculated as Table 26,

Table 26. Limit of Quantitation data for Lignocaine HCl and Nifedipine.

LOQ = 10 × (SD/Slope)

Where,

SD=Standard deviation of Y-intercepts of 3 calibration curves. Slope = Mean slope of the 3 calibration curves.

Robustness

➢ Following parameters were changed one by one and their effect was observed on system suitability for standard preparation.

1. Flow rate of mobile phase was changed (± 0.2 ml/min) 0.8 ml/min and 1.2 ml/min.

2. pH of Mobile phase was changed ( ± 0.2 ) 3.2 and 2.8

3. Ratio of Mobile phase was changed(±2) Buffer: Methanol (48:52) and Buffer: Methanol (52:48)

➢ The effect of changes was found to be within the acceptance criteria as shown in below table. The % RSD should be less than 2% (Tables 27 and 28).

Table 27. Robustness data for Lignocaine HCl.

Table 28. Robustness data for Nifedipine.

Analysis of Marketed Formulation by Developed Method

➢ Applicability of the proposed method was tested by analyzing the commercially available Cream formulation Anobliss .The results are shown in Table 29.

Table 29. Analysis of marketed formulation.

➢ Cream equivalent to 15 μg/mL Lignocaine HCl and 3 μg/mL of Nifedipine was taken. Accurately weighted 1 gm of cream was transferred in to a 100 ml volumetric flask, volume was made up to the mark by Mobile Phase, shaken for

15 minutes than put that solution on sonicator and sonicated for 15-20 minutes at room temperature, The solution was filtered through Whatman filter paper no.42 and first few drops of filtrate were discarded. 10ml of this solution was diluted to 100 ml with mobile phase. The solution was injected 20 μl. The areas of resulting peak were measured at 234 nm.

➢ The assay results were comparable to labeled value of each drug in Combined dosage form. These results indicate that the developed method is accurate, precise, simple and rapid. It can be used in the routine quality control of dosage form in industries.

Overview of Validation Parameters:

It is shown in Table 30.

Table 30. Summary of Validation Parameters.

Stability Indicating Method For Simultaneous Estimation of Lignocaine Hcl and Nifedipine Done By RP-HPLC

(Figures 39 and 40)

Acid degradation

Acid decomposition studies were performed by taking 1 ml of stock solution and was transferred in to 10 ml of volumetric flask. 2 ml of 0.1 N HCl solutions was added and mixed well and put for 4 hrs. After time period volume was adjusted with diluents to get 15 μg/ml for Lignocaine HCl and 3 μg/ml for Nifedipine (Figures 41-44).

Base degradation

Basic decomposition studies were performed by taking 1 ml of stock solution and was transferred in to 10 ml of volumetric flask. 2 ml of 0.1 N NaOH solutions was added and mixed well and put for 4 hrs. After time period the volume was adjusted with diluents to get 15 μg/ml for Lignocaine HCl and 3 μg/ml for Nifedipine (Figures 45-48).

Oxidative degradation

Oxidative decomposition studies were performed by taking 1 ml of stock solution was transferred in to 10 ml of volumetric flask. 2 ml of 3% H2O2 solutions was added and mixed well and put for 3 hrs. After time period the volume was adjusted with diluents to get 15 μg/ml for Lignocaine HCl and 3 μg/ml for Nifedipine (Figures 49-52).

Photo degradation

Photo Degradation studies were performed by taking 1 ml of stock solution was transferred in to 10 ml of volumetric flask. The volumetric flask was keep in presence of Sunlight for 3 hrs. Then the volume was adjusted with diluent to get 15 μg/ml for Lignocaine HCl and 3 μg/ml for Nifedipine (Figures 53-56).

Thermal degradation

Thermal Degradation studies were performed 1 ml of stock solution was transferred in to 0 ml of volumetric flask. The volumetric flask was stored in oven at 110°C for 4hrs. Then the volume was adjusted with diluents to get 15 μg/ml for Lignocaine HCl and 3 μg/ml for Nifedipine (Figures 57-60).

Overview of Stability Indicating Parameters

Shown in Tables 31-33

Table 31. Nifedipine and Lignocaine HCl std for stability.

Table 32. Nifedipine % Degradation.

Table 33. Lignocaine HCl % Degradation.

Conclusion

RP-HPLC method was developed for simultaneous estimation Nifedipine and Lignocaine HCl. In RP-HPLC method, good resolution and separation of two drugs was achieved. 0.05 M Sodium dihydrogen phosphate (pH 3.0): Methanol (50:50 v/v) was used as mobile phase. Retention time of Nifedipine and Lignocaine HCl were found to be 4.170 and 6.530 min respectively with a flow rate of 1 ml/min.

Lignocaine HCl is a local anesthetic and cardiac depressant as an antiarrhythmia agent. Lignocaine HCl stabilized the neuronal by inhibiting the ionic fluxes required for the initiation and conduction of impulses thereby effecting local anesthetic action. Nifedipine is a dihydropyridine channel blocker that blocks L-type calcium channels. Its main uses are as an antianginal and antihypertensive. Lignocaine HCl is act as anesthetic and Nifedipine act as vasodilator which reduce sphincter pressure, which result in reduction in hypertonocity in Anal Fissure.

Accurate, precise, simple, specific, method was developed and validated for simultaneous estimation of Lignocaine HCl and Nifedipine in cream. Stress study was performed, results of degradation were found within limit. We can apply this Stability Indicating RP-HPLC develop method for Simultaneous estimation of Lignocaine HCl and Nifedipine in Cream.

References

1. Dong WM (2006) Modern HPLC for Practicing Scientists; A Wiley- Inter science publication, USA 1-9.
2. Kazakevich Y and LoBrutto R (2007) HPLC for pharmaceutical Scientists; A John Wiley and sons 1-6.
3. SnyderLR., Kirkland JJ and Glajch LJ (1997) Introduction to Modern Liquid Chromatography; 2nd Edn; A Wiley- Inter science publication, NY, USA 5-42.
4. Snyder LR., Kirkland JJ and Glajch LJ (1997) Practical HPLC Method Development; 2nd Edn; A Wiley- Inter science publication, NY, USA 3-35.
5. Skoog DA, Holler FJ, Nieman TA (2005) Introduction to UV Spectroscopy, Principle of instrumental analysis; 5th Edn; Thomson Brooks/Cole publication 301.
6. Beckett AH, Stenlake JB (2001) UV-visible Spectrophotometry: Practical Pharmaceutical Chemistry; 4th Edn; Part-II, C.B.S. Publishers, Delhi 275-299.
7. FDA, Guidance for Industry; Analytical Procedures and Methods Validation (Draft guidance), Food & Drug Administration, Rockville, US Department of Health and Human Services, 2000.
8. ICH, Validation of Analytical Procedures; Methodology, Q2 (R1), International Conference on Harmonization, IFPMA, Geneva 1996.
9. Golfam F1, Golfam P, Khalaj A, Sayed Mortaz SS (2010) The effect of topical nifedipine in treatment of chronic anal fissure. Acta Med Iran 48: 295-299.
10. http://en.wikipedia.org/wiki/Lignocaine
11. www.drugbank.ca/drugs/DB002181
12. http://www.drugbank.ca/drugs/DB01115
13. http://en.wikipedia.org/wiki/Nifedipine
14. USP30–NF25, Volume No. 31: 415.
15. British Pharmacopoeia 2010, Vol-I &II, Medicinal and pharmaceutical Substances, Lignocaine.
16. Prathyusha PGS, Shanmungasundram P, Naidu PY (2013) Validated Stability indicating UPLC Method for the detection of Lignocaine and its degradation impurities in pharmaceutical dosage form, Int.J. Adv. In Pharm. Anal 3: 1-10.
17. Edhorn GA (1971) Determination of lidocaine in whole blood by gas chromatography. Can Anaesth Soc J 18: 189-198.
18. Laine D, Johnson C, Charistianson C, Needham S, Validation of an HPLC/MS/MS Bioanalytical Method for the Quantitative Analysis of Lignocaine from Rat and Mini- Pig Plasma Alturas Anal inc.
19. Maes A, Weiland L, Sandersen C, Gasthuys F, Backer PD (2007) Determination of Lignocaine and its two N-desethylated metabolites in dog and horse plasma by high- performance liquid chromatography combined with electrospray ionization tandem mass spectrometry. J Chrm 852: 180-187.
20. Kadioglu Y, Atila A, Gultekin MS, Alp NA (2013) Investigation of Behavior of Forced Degradation of Lignocaine HCl by NMR Spectroscopy and GC-FID Methods: Validation of GC-FID Method for Determination of Related Substance in Pharmaceutical Formulations. Iran J Pharm Res 12: 659-669.
21. Putta M, Gurupandya BM, Sidha NS (2013) Spectrophotometric Determination of Lignocaine In Bulk And Pharmaceutical Formulations Inventi.
22. Okdeh MMS, Moustpha C, Saraitah M (2015) New Method For Spectrophotometric Determination of Lignocaine SMU Med J 2: 81-92.
23. Karthik BK, Rajan VS, Begum NT (2012) Analytical Method Development and Validation Of Lignocaine In Ointment Formulation By U.V Spectrophotometric Method. Int J Pharm and Pharm Sci 4: 610-614.
24. Gamje TAN, Onur MA, Abaci S (2012) Determination of Lignocaine based on electrocatalysis of a chemically modified electrode. Turk J Chem 36: 593-600.
25. Abdelwahab NS, Nouruddin WA, Fatari HM, Osman WM (2013) Determination of Thiomersal, Lignocaine and Phenylepherine in their Ternary Mixture. Chro Sep Tech 4: 1-6.
26. Asghar S, Sheikh S, Shoekat P (2012) RP – HPLC Simultaneous Estimation of Diclofenac Diethylamine and Lignocaine in Pharmaceutical Gel Formulation Int. J. Res. In Pharm. And sci 2: 78-88.
27. Belal TS, Haggag RS (2012) Gradient HPLC-DAD stability indicating determination of miconazole nitrate and lidocaine hydrochloride in their combined oral gel dosage form. J Chromatogr Sci 50: 401-409.
28. Gebauer MG, McClure AF, Vlahakis TL (2001) Stability indicating HPLC method for the estimation of oxycodone and lidocaine in rectal gel. Int J Pharm 223: 49-54.
29. Plenis A, Klonieczna L (2013) Development of the HPLC Method for Simultaneous Determination of Lignocaine Hydrochloride and Tribenoside Along with Their Impurities Supported by the QSRR Approach Cromatographia 76: 255-265.
30. Sarrafi AHM, Bahmei M, Mousvi AZ (2010) Simultaneous spectrophotometric determination of Lignocaine and hydrocortisone acetate in pharmaceutical preparations by multivariate calibration methods J Ira Chem Res 3: 31-36.
31. Nourddin WA, Abdelwahab NS, Abdelkawy A, Elgebaly M (2014) Different Spectrophotometric and TLC-Densitometric Methods for Determination of Lignocaine HCl and Cetylpyridinum Chloride Eur J Health 1: 1-19.
32. Dołowy M, Kulpińska-Kucia K, Pyka A (2014) Validation of a thin-layer chromatography for the determination of hydrocortisone acetate and lidocaine in a pharmaceutical preparation. ScientificWorldJournal 2014: 107879.
33. Indian Pharmacopoeia, THE INDIAN PHARMACOPOEIA COMMISSION GHAZIABAD Vol.II, 2010, 1779-1780.
34. USP30–NF25, Volume No. 27: 2569.
35. British Pharmacopoeia (2010) Vol-I &II, Medicinal and pharmaceutical Substances, Nifedipine.
36. Uday YA, Patel SK, kumar D, Sandip AB (2011) Estimation of Nifedipine by reverse phase high performance liquid chromatography tablet dosage form. Int J Pharm and life sci 2: 610-612.
37. Abou-Auda HS, Najjar TA, Al-Khamis KI, Al-Hadiya BM, Ghilzai NM, et al. (2000) Liquid chromatographic assay of nifedipine in human plasma and its application to pharmacokinetic studies. J Pharm Biomed Anal 22: 241-249.
38. Sanka K, Gullapeli R, Patil N, Rao P, Divan PV (2014) Development and validation of RP- HPLC method for Nifedipine and its application for a novel Proniosomal formulation analysis and dissolution study. Der Pharma Chemica 6: 279-289.
39. Patravale VB, Nair VB, Gore SP (2000) High performance thin layer chromatographic determination of nifedipine from bulk drug and from pharmaceuticals. J Pharm Biomed Anal 23: 623-6 27.
40. Mannickent S, Contreras J, Schulz B, Diego M (2012) High Performance Thin Layer Chromatographic Determination Of Nifedipine In Human Serum After Liquid-Liquid Extraction Quim. Nova 35: 411-415.
41. Patra S (2012) Synthetic Studies Towards Nifedipine And Estimation Of Nifedipine By HPTLC Method , Int. J. of pharm. Chem and bio Sci. 2: 482-487.
42. Reddy S, Ahmad I, Nayak N, Thangam S (2013) Estimation Of Nifedipine In Human Plasma By LC-MS/MS Asian. J Pharm and Chem Res 6: 83.
43. Rodigruz CG, Alvarez JG, Remolli MV (2014) Method development and validation study for quantitative determination of Nifedipine and related substances by ultra high performance liquid chromatography. Biomed Chrom 29: 233-239.
44. Rahman N1, Azmi SN (2005) New spectrophotometric methods for the determination of nifedipine in pharmaceutical formulations. Acta Biochim Pol 52: 915-922.
45. Revathi R, Ethiraj T, Saravanam VS, Ganeshan V (2010) New Spectroscopic Determination Of Nifedipine Using Hydrotropic Solubilization. Int J of pharm and pharm Sci 2: 74-76.
46. Rahman N, Azmi HNS (2006) Validated Spectrophotometric Method for the Assay of Nifedipine in Bulk and Commercial Dosage Forms. Science asia 32: 429-435.
47. Aderibigde SA, Adegoke OA, Idowu OS (2012) A new colorimetric method for the determination of Nifedipine tablets by derivatization using 4carboxyl 2,6dinitrobenzene diazonium ion. Int J Ind Chem 3: 1-6.
48. Vidhyadhara S, Sashidhar RLC, Kumar PB, Ramarao NT, Shriharita N (2012) Method Development and Validation for Simultaneous Estimation of Atenolol and Nifedipine in Pharmaceutical Dosage Forms by RP-HPLC. Orie J Chem 28: 1691-1696.
49. Abdallah I, Ibrahim A, Ibrahim N, Rizk N (2015) Simultaneous Determination of Atenolol and Nifedipine by Usin Spectrophotometric Method with Multivariate Calibration and HPLC Method Implementing Design of Experiment. Pharm Anal Acta 6: 1-9.
50. Saraf SA (2010) Rapid and Sensitive HPLC Method for the Simultaneous estimation of Nifedipine, Nateglinide and Lovastatin in Synthetic ternary Mixture. Int J Pharm Tech Res 2: 682-688.
51. Shelke OS, Sable KS, Neharkar VS, Madhdevru BV (2012) Development And Validation Of A UV Spectrophotometric Method For The Simultaneous Determination Of Nifedipine And Atenolol In Combined Dosage Form. Int Res J Pharm 3: 360-364.
52. Sojitra R, Virani P, Hashumati R (2015) Absorbance Correction Method for Simultaneous Estimation of Nifedipine and Metoprolol Succinate in Their Synthetic Mixture Using From Spectrophotometry. Int J Od adv In sci Res 1: 151-155.
53. Ezzeldin E, Abo-Talib NF, Tammam MH, Shahat AA (2014) Development and validation of LC/MS/MS method for the simultaneous determination of montelukast, gliclazide, and nifedipine and its application to a pharmacokinetic study. Chem Cent J 8: 17.
54. Patel PK, Patel DB (2013) Simultaneous Estimation of Nifedipine and Lignocaine in Cream by First Order Derivative Spectrophotometric Method Inventi, 2013: 1-5.
55. Doshi M, Joshi M, Mody S (1998) Nifedipine containing pharmaceutical extended release composition and a process for the preparation thereof European Patents, EP19960113165.
56. Rhodes A (1992) Nifedipine containing pharmaceutical compositions and process for the preparation thereof US Patents, US 07/472,659.
57. Mehta A (1999) Controlled release Nifedipine US Patents, US 08/738,925.
58. Bouffrad F (2009) Anesthetic composition for topical administration comprising lignocaine, prilocaine and tetracaine, European Patents, EP20040741683.
59. Ciullo J (2013) Lignocaine patch and methods of use thereof US Patents, US 13/722,458.
