One of the most popular technique to control robotic arm is by making it emulate the movements of the human arm. One of the advantages of the robotic arm is that it simplifies computational complexities. An arrangement of sensors attached to the human arm is used for tracking down hand movement. The arrangement consists of two accelerometers, a potentiometer and an IR receiver-transmitter pair. The Robotic Arm has Five degree of freedom where each joint is controlled by a servo motor that are capable of producing a movement of 180 degrees. In this paper we have proposed an algorithm based on correction and prediction for the purpose of swift synchronization of human hand and Robotic Arm. Successful implementation of the algorithm was achieved on the robotic arm.
Keywords |
| Gesture recognition, Robotic arm, Human machine interface, gesture control. |
INTRODUCTION |
| The design and control of a robotic arm involves many complexities that must be taken care of. Furthermore, making the robotic arm follow a given trajectory requires high precision and accuracy.Hence making the robotic arm copy the motion of the human hand not only provides greater precision but also gives great flexibility to the user. When gesture is the mode of control for a robot, characteristics of gestures are needed for designing and developing a gesture recognition system. [2] |
| A gesture is defined as a mode of non-verbal communication that involves the use of body parts such as fingers, wrists, head etc. A primary goal of gesture control is to create a system which can identify specific human gestures and use them to convey information. Several systems today are designed to utilize the features of gesture based interfaces like smart phones, ATM, computers and so on. After a gesture has been captured, there must exist a way or an algorithm for the gesture to be interpreted into meaningful command or instruction for the human-robot interaction [3]. |
| Our paper deals with one such algorithm i.e. PREDICTION AND CORRECTION ALGORITHM FOR A GESTURE CONTROLLED ROBOTIC ARM which will emulate the movements of the human arm precisely. |
LITERATURE REVIEW |
| Gesture recognition aims at the interpretation of human gestures via mathematical algorithms. Approaches to handle gesture recognition include complex mathematical models such as Hidden Markov Models, Artificial Neural Networks, Kalman Filtering and advanced Particle Filtering [1]. |
| Gesture control involves the study of movement of body parts. At present a lot of work is being carried out on recognizing human emotions with the help of human gesture. The devices used for recognizing gesture may either be worn around the human body like a haptic suit, glove or a Kinectsensor or they may be read by an external sensor like a camera that records the body movement from a distance to the user. Gesture recognition might be seen as a medium for the computers to understand human emotions thus cutting down the gap between men and machines. |
| Gesture recognition enables humans to interact with machines naturally without the use of any external control devices. Using gestures to control a device makes it more convenient for the user, allowing him greater flexibility .The human machine interface (HMI) has a great use in areas of surgery and for day to day usage of physically handicapped people. |
SETUP |
A. SENSOR SETUP |
| This part of the setup needs to be worn on the human hand. The sensors consist of an Infra-Red transmitter receiver pair used for gripping. This sensor is just used to control the opening and closing of the end effector and therefore performs the action of a switch.2 MEMS accelerometer ADXL 335 are worn around the palm and the elbow and sense the movements of the human arm along these joints. The accelerometer that has been worn around the palm senses two different motions of the wrists. Apart from these sensors a potentiometer is used to track the rotation of the elbow in another direction. |
 |
| Figure 1 displays the various components that are attached to the robotic arm along with the robotic arm. All the sensors are clearly visible apart from the potentiometer that is worn on the other hand. Potentiometer was only used in order to economize the project. An IMU containing an integration of the accelerometer and the gyroscope can be used instead. |
B. THE ROBOTIC ARM |
| The setup consists of a robotic arm having 5 degrees of freedom and 6 servo motors. The movement of the joints are controlled using servo motors that can move a fixed angle ranging from 0 to 180 degrees.Atmega16 is the microcontroller used that acts as the brain of the complete setup. |
 |
| Figure 2 displays the various parts of the robotic arm .The arm overall combines a motion for gripping , 2 motions of the wrist and 2 movements of the elbow. |
APPROACH |
| An algorithm has been devised to make the robotic arm replicate the motions of the human arm .The robotic arm does not exactly have an idea of the exact movement of the human arm and takes input from noisy sensors. The algorithm is broken down into two parts. The job of the first section of the algorithm is to predict the present position for each joint with the aid of sensor data. The second part of the algorithm focuses on removing vibrations in the robotic arm that may occur due to small fluctuations in the sensor values. |
A. LINEAR PREDICTION |
| The values of the sensors and motors for every joint have been stored for certain predefined positions for each joint movement .The position of the robotic arm is predicted linearly using the given formulae. The position of the servo motor that lie between the predefined positions are predicted by the formula stated below: |
 |
 |

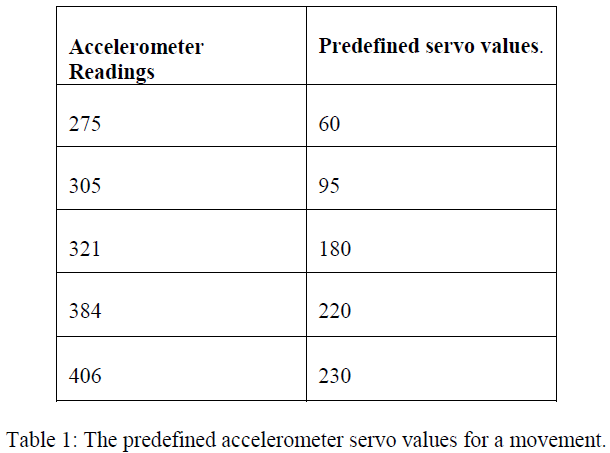

| Figure 2 displays the linear plot that has been drawn with the help of predefined values for movement 1. The plot is drawn on the basis of the accelerometer values and servo values for 5 different positions during movement 1. Figure 3 displays linear plot drawn on the basis of 5 different positions during movement 2. We have used a potentiometer that is attached at the lower end of the elbow. The potentiometer and servo readings are recorded for different positions and a graph is plotted with the help of these values. Similarly figure 1 and figure 4 display the two plots for that predict the values of the wrist movement. |
B. CORRECTION |
| We observed that the robotic arm may still vibrate even if the human hand is still. Therefore, there is a strong need to remove these vibrations .Also the robotic arm must be able to capture small movements. The correction part of the algorithm focuses on removing the small vibration in a robotic arm due to the noisy sensors. The predicted value is compared to the present value of the servo motor and the difference between the two values is noted down |
 |
RESULT |
| As the error can be both positive and negative hence the robotic arm becomes less susceptible to vibrations as when the human arm vibrates the error would eventually cancel itself or become small in magnitude than the threshold value and at the same time it can detect small changes made in the human arm because the error adds up to cross the threshold. We now demonstrate our algorithm for a single servo –accelerometer pair. |
 |
| Now let us assume that our accelerometer gives a reading of 315, that lies between 305 and 321.The corresponding servo value is calculated with the help of equation 1 where, m1= 95,m2=180,s1=305,s2=321. On substituting these values in the equation the servo value that is predicted is 148.125 that can be rounded up to 148. So the predicted value now becomes 148. Now the error between the predicted value and the present value is calculated. We assume two different scenarios here .In scenario 1 when the magnitude of the difference between the present value and the predicted value is less than a threshold value say 8, the motor assumes the present value according to equation 3 .Let us say that the value present value of the motor is 150, so the error will be -2 this case having a magnitude less than the threshold .Therefore there will be no change in the predicted value and the new servo value will remain 148. On the contrary, if the present value was 130 and the predicted value is 148, the difference between these values is greater than the threshold 8.So the present value will be updated to 148. |
| During the initial phase of the construction of the algorithm to control the robotic arm emphasis was laid only on the prediction part .The correction part was later introduced in order to overcome the disturbances that are present in the robotic arm due to noise present in the sensors. The correction part of the algorithm ensures a smooth control for the robotic arm that overcomes hiccups that vibrations occurring in the arm. |
CONCLUSION AND FUTURE PROSPECTS |
| In the paper an algorithm is proposed to control a gesture based robotic arm. The position of each motor is predicted based on the sensory input later the position is corrected while comparing it to the actual position of the motor .This algorithm is helpful in reducing the effects of vibrations that may take place in a human arm and hence it can find great use in the area of medical surgery.The correction part of the algorithm will be highly useful in case a surgeon performs a surgery and his hands vibrate whereas there shall be no vibration in the robotic counterpart because of this algorithm. The algorithm can also be effectively used for emulating the motion of other body parts with the help of noisy sensors. |
APPENDIX |
| A. M2- predefined value of the servo motor for the next known position. |
| B. M1- predefined value of the servo motor for the previous known position |
| C. S1- predefined sensor value for the last known position |
| D. S2- predefined sensor value for the next known position |
